Hitec HS-45HB Servo micro con Karbonite

Descripción

Descripción del producto

Servo RC

El HS-45HB de Hitec ofrece la economía y durabilidad de otros famosos servos micro, ahora con eje de salida soportado por rodamiento de bolas y engranajes Karbonite.

Características y especificaciones

Motor Type: 3 Pole

Bearing Type: Top Ball Bearing

Speed (4.8V/6.0V): 0.14/0.12 sec@60 deg.

Torque oz./in. (4.8V/6.0V): 14/17

Torque kg./cm. (4.8V/6.0V): 1.0/1.2

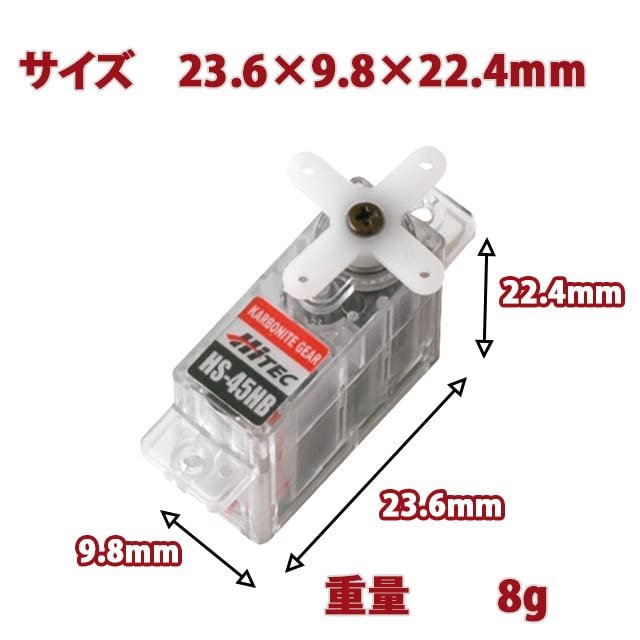

Size in Inches: 0.92x0.38x0.88

Size in Millimeters: 23.37x9.65x22.35

Weight ounces: 0.28

Weight grams: 7.94

Especificaciones avanzadas

Control System: +Pulse Width Control 1500usec Neutral

Operating Voltage Range: 4.8V - 6V

Operating Temperature Range: -20 C to +60 C (-4 F to +140 F)

Idle Current: 8mA

No Load Running Current (4.8V/6.0V): 100mA/60

Stall Current (4.8V/6.0V): 440mA

Dead Band Width: 5usec

Potentiometer Type: 2 Slider/Direct Drive

Connector Wire Length: 250mm (9.84 in)

Connector Wire Gauge: 28AWG.

1. Speed (4.8V/6.0V): 0.14/0.12 sec@60 degree

2. Torque oz./in. (4.8V/6.0V): 14/17, Torque kg./cm. (4.8V/6.0V): 1.0/1.2

3. Size in Inches: 0.92x0.38x0.88, Size in Millimeters: 23.37x9.65x22.35

4. Weight ounces: 0.28, Weight grams: 7.94
